Purchase Order Flow Chart
1. RECEIVING AND REVIEW OF ORDERS
2. EXAMINE AND CONVERT MANUFACTURING DRAWINGS
3. MANUFACTURING JOB RELEASE TO PRODUCTION LINE
4. SELF QC
5. IPQC
6. FQC
7. PACKAGING & SHIPPING
Manufacturing Equipment
| Item |
Title |
Qty |
Unit |
Remark |
| 1 |

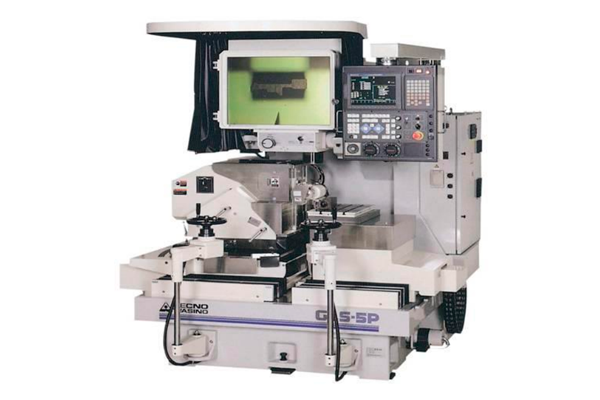

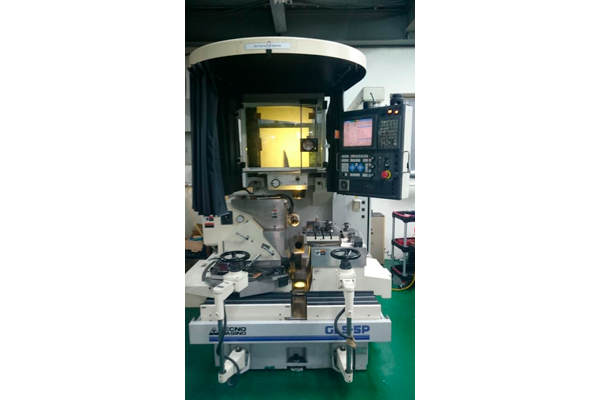

CNC Optical Profile Grinding Machine |
3 |
SET |
WASINO, Waida |
| 2 |
NC Surface and Grinding Machine |
5 |
SET |
ZIERSCH, ACE STAR & BALTRTUSCH |
| 3 |
Surface Grinding Machine |
37 |
SET |
Datong & Okamoto |
| 4 |
CNC Wire-cutting EDM Machine |
9 |
SET |
SODICK x 4; SEIBU x 4; Makino x 1 |
| 5 |
CNC Milling Machine |
5 |
SET |
TAKUMI & OKUMA |
| 6 |
CNC Hi-Speed 3D Milling Machine |
5 |
SET |
YCM, Makino V33i |
| 7 |
CNC EDM Machine |
7 |
SET |
Sodick, Makino |
| 8 |
CNC Lathe Machine |
5 |
SET |
Long-term Subcontractor |
| 9 |
Precision OD Grinding Machine |
1 |
SET |
Jeng-Feng |
| 10 |
Precision ID Grinding Machine |
1 |
SET |
Jeng-Feng |
| 11 |
Grinder Balancer for Wheels |
1 |
SET |
KGB-2001 |
| 12 |
CNC Jig Grinder: Moore 8400 |
1 |
SET |
Moore 8400 |
| 13 |
SIP Jig Borer |
2 |
SET |
SIP |
| 14 |
Stamping Press |
2 |
SET |
ISIS & Dobby (45 and 60 tons) |
| 15 |
Injection Machine |
1 |
SET |
100 ton |
| 16 |
Laser Engraving/Marking |
1 |
SET |
Taiwan |
Business Service
1. Complete tool set and components: including diversified categories of machined parts as follows:
1.a. Complete Mold and Die.

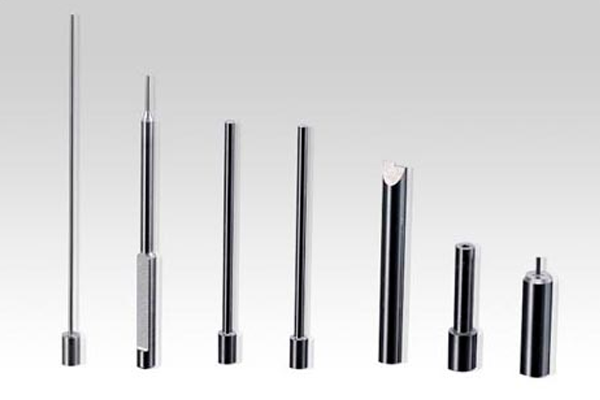

1.b. CNC Optical Profile Grinding Components.
1.c. Forming Grinding Components.
1.d. OD & ID Grinding Components.

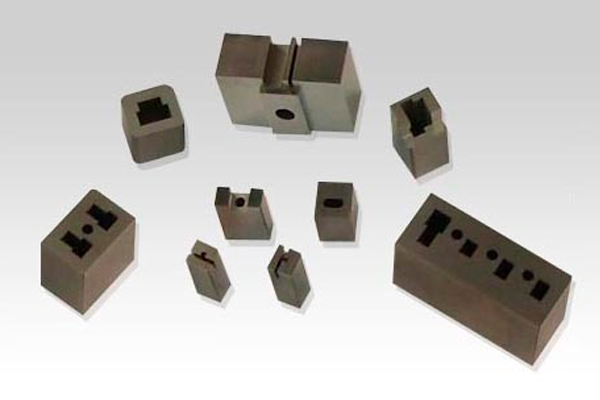

1.e. CNC Wire-cut EDM Machining Components.
1.f. CNC EDM machining Components.

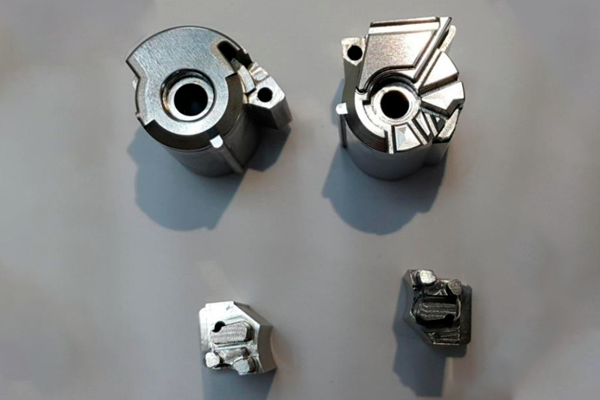

1.g CNC Milling Machining Components.
1.h CNC 3D High Speed Milling Machining Components.
1.i CNC Lathing Machining Components.
2. ODM & OEM Die/Mold prototype tool.
3. Tooling Part.
4. Mechanism of Automation Equipment.
5. Customized Part and Assembly.
Manufacturing Equipment
| Item |
Title |
Qty |
Remark |
| 1 |
Tool IndicatoTool microscopers Micro-scope |
4 set |
ISOMA, Swiss 1 set NIKON, Japan 3sets |
| 2 |
Image Dimension Measurement System |
1 set |
Keyence IM-7002 |
| 3 |
2.5D Tool microscope |
2 set |
ISOMA, Swiss & Micro Vu |
| 4 |
Stereo microscope |
1 set |
Nikon |
| 5 |
TESA μ-Hite Height Gauge |
1 set |
TESA, Swiss |
| 6 |
Rockwell Hardness Tester |
2 set |
Wilson Wolpert |
| 7 |
2D Digital Height Gauge |
3 set |
Sylvac/Swiss, Mahr/Germany |
| 8 |
Digimar CX1 Height Measuring Station |
1 set |
Mahr, Germany |
| 9 |
Mitutoyo Height Gauge |
4 sets |
Mitutoyo, Japan |
| 10 |
Profile Projector |
7 sets |
Nikon x 3,Mitutoyo x 4, Japan |
| 11 |
Mitutoyo Height Master |
5 set |
Mitutoyo, Japan |
| 12 |
3-point Micro Meter, Electronics |
3 sets |
6-12mm Maha | 12-25mm |
| 13 |
3-point Micro Meter, Mechanical |
1 set |
6-8mm Mitutoyo | 8-10mm Mitutoyo | 10-12mm Mitutoyo |

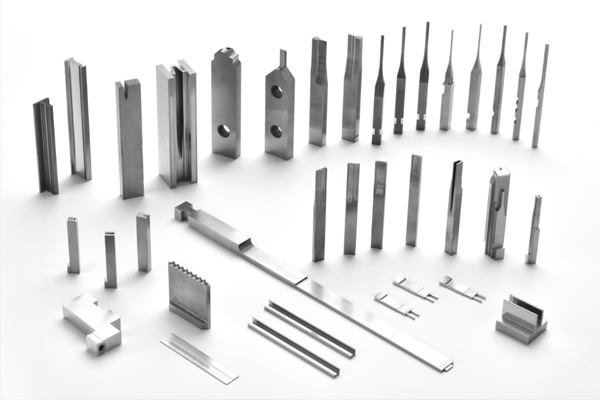

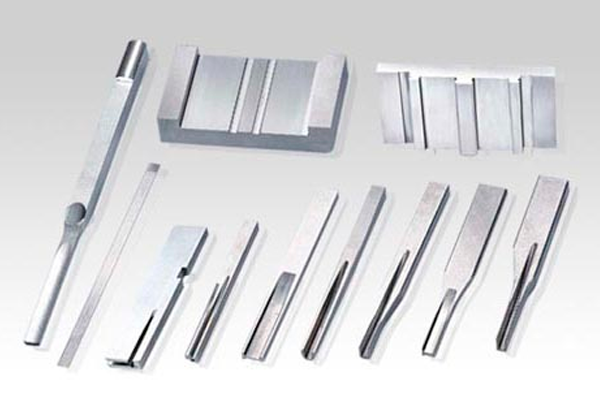

Product List

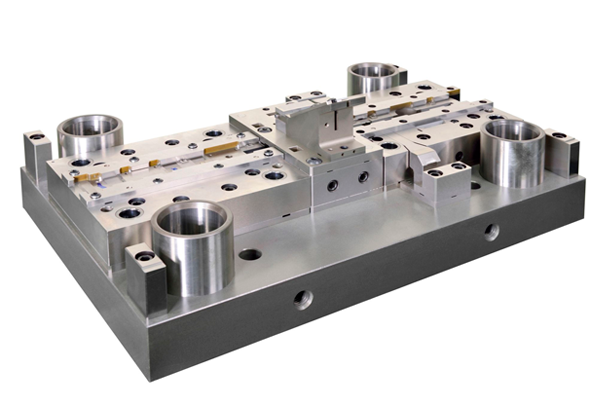

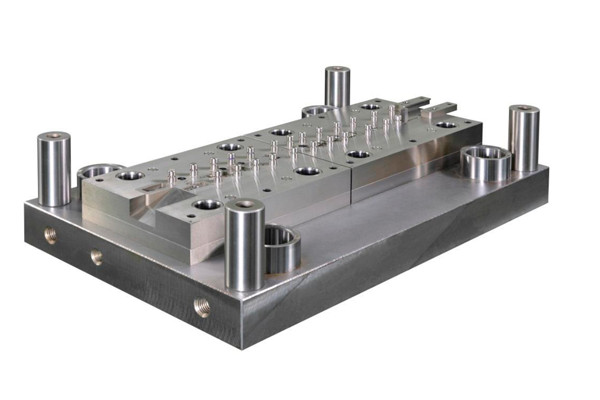

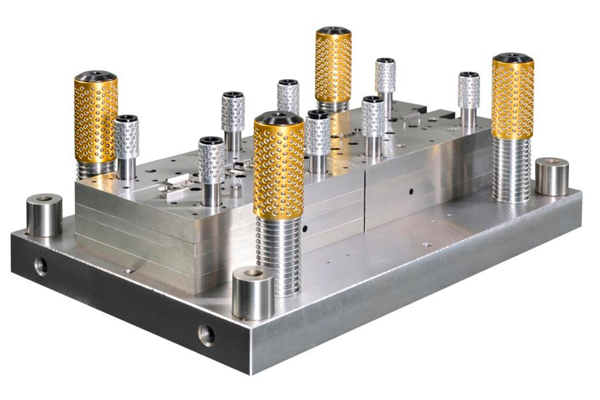

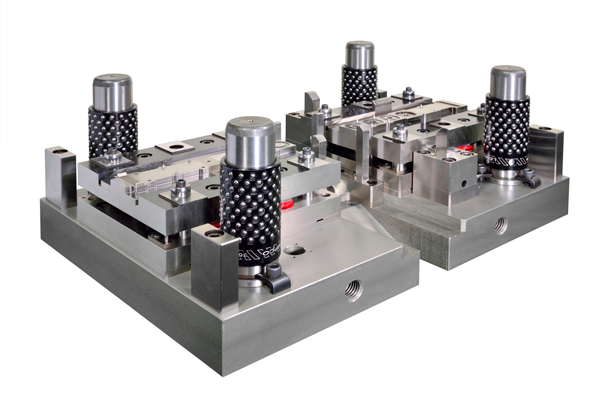

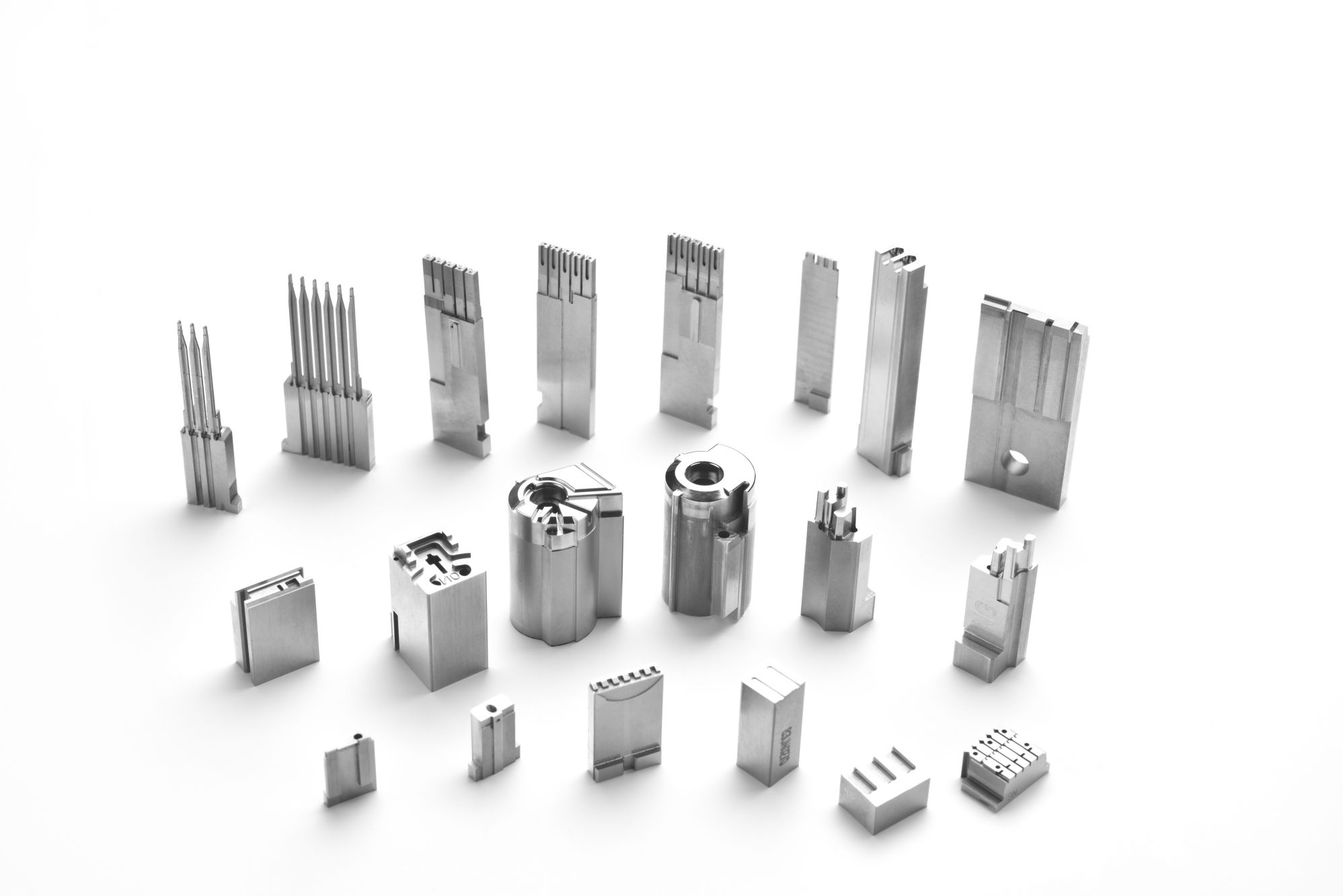

Product List Die

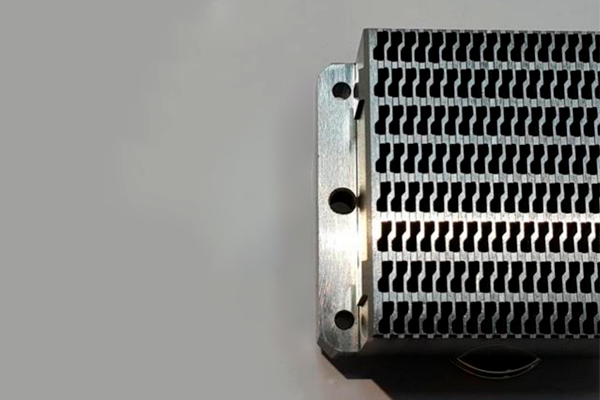

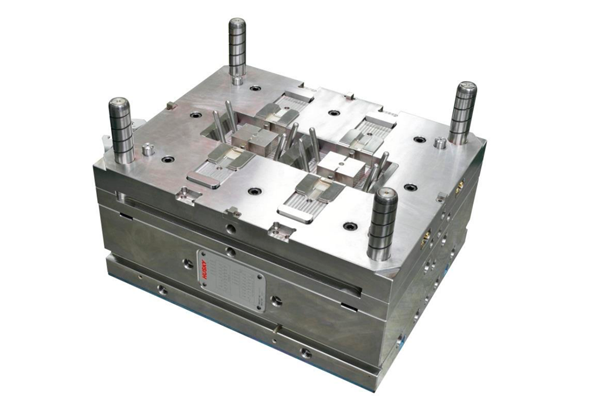

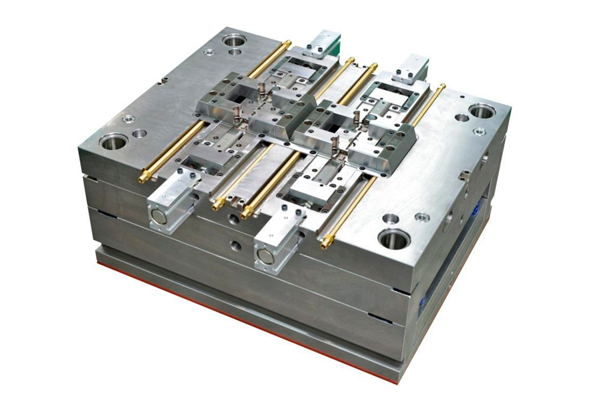

Product List Mold

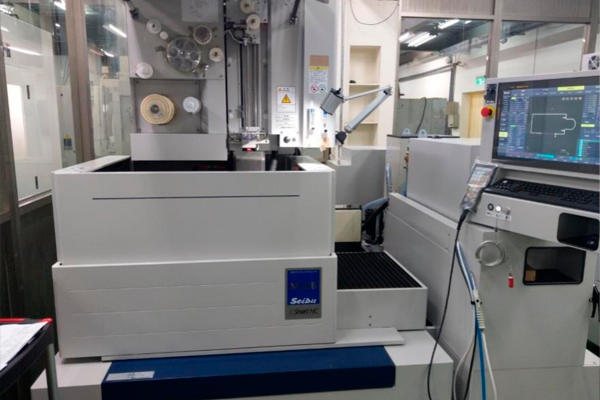

CNC Wire Cut EDM Processing

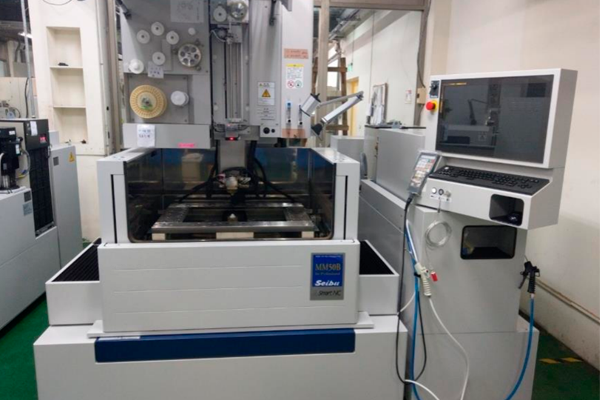

CNC Wire Cut EDM Machine : SEIBU x 4
Machine Model : SEIBU M50B from Japan
Precision : +/-0.002mm
Max surface roughness : 0.1Ra

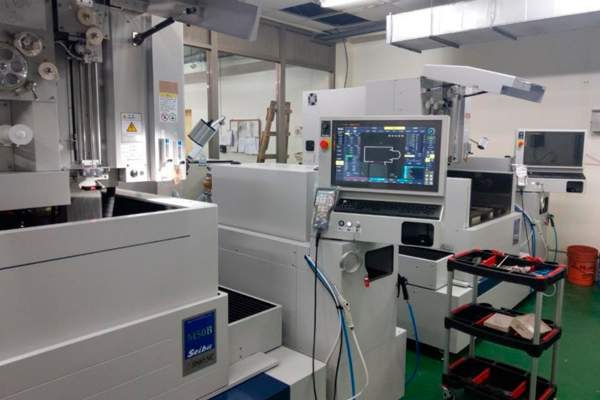

CNC Wire Cut EDM Processing
CNC Wire Cut EDM Machine
Machine Model : M500S of Seibu in Japan
Precision: +/-0.002mm
Max surface roughness: 0.1Ra

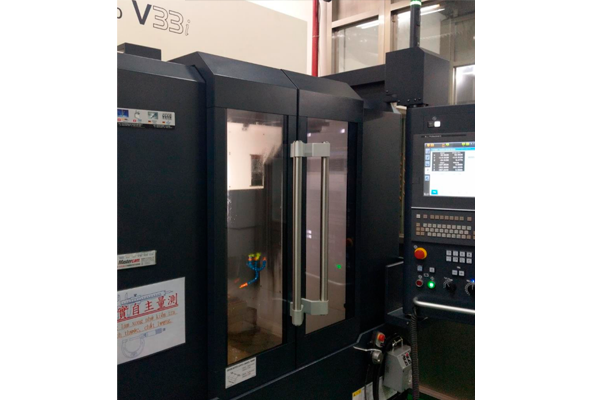

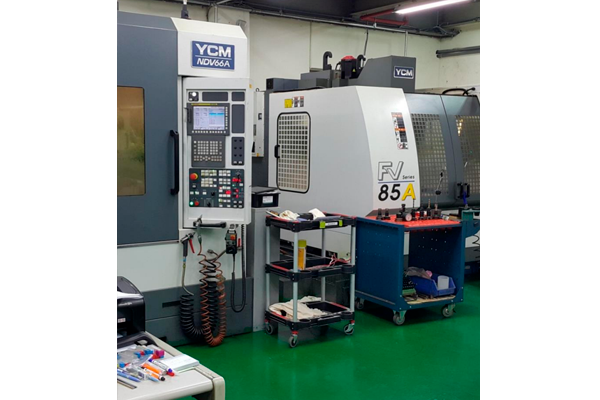

CNC Milling Processing

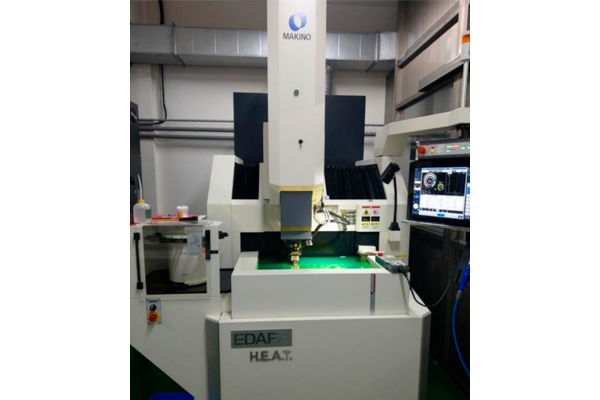

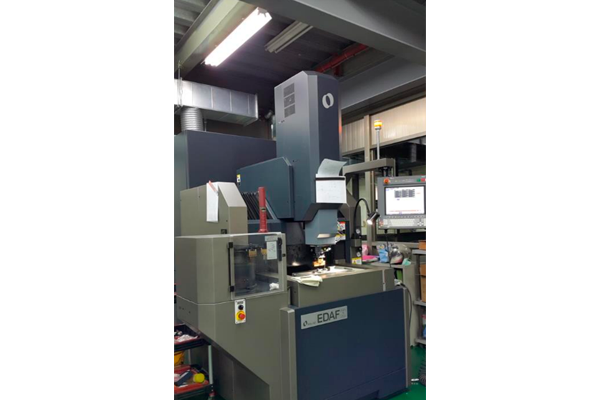

MAKINO EDM Sinking

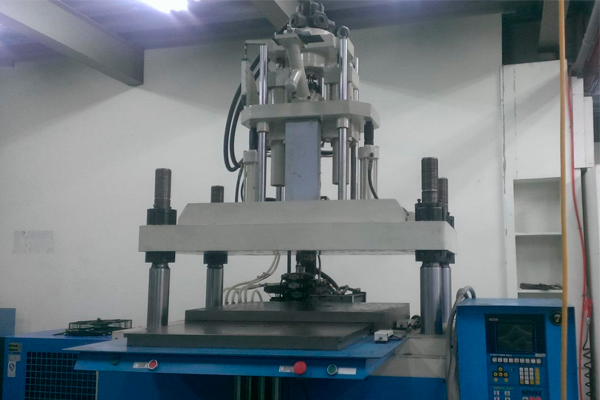

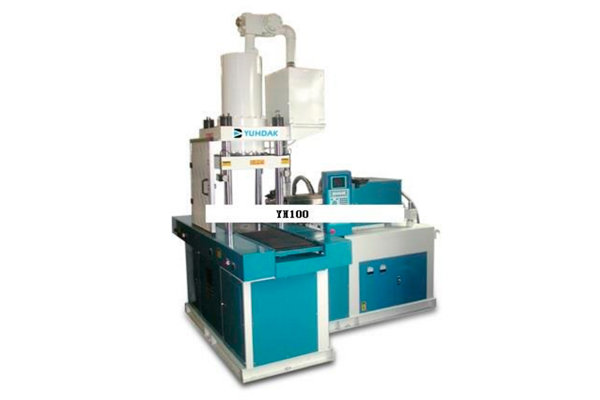

YH100 Injection Machine

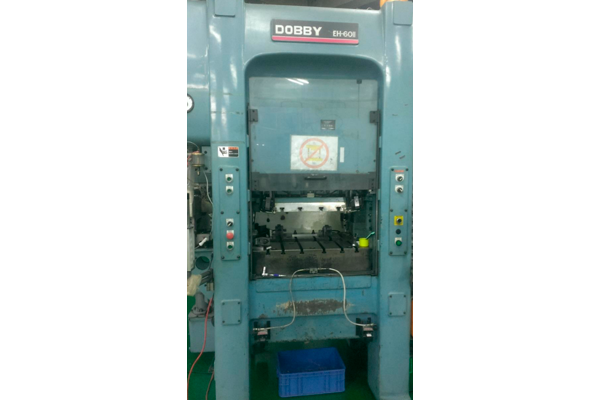

Stamping Machine DOBBY
